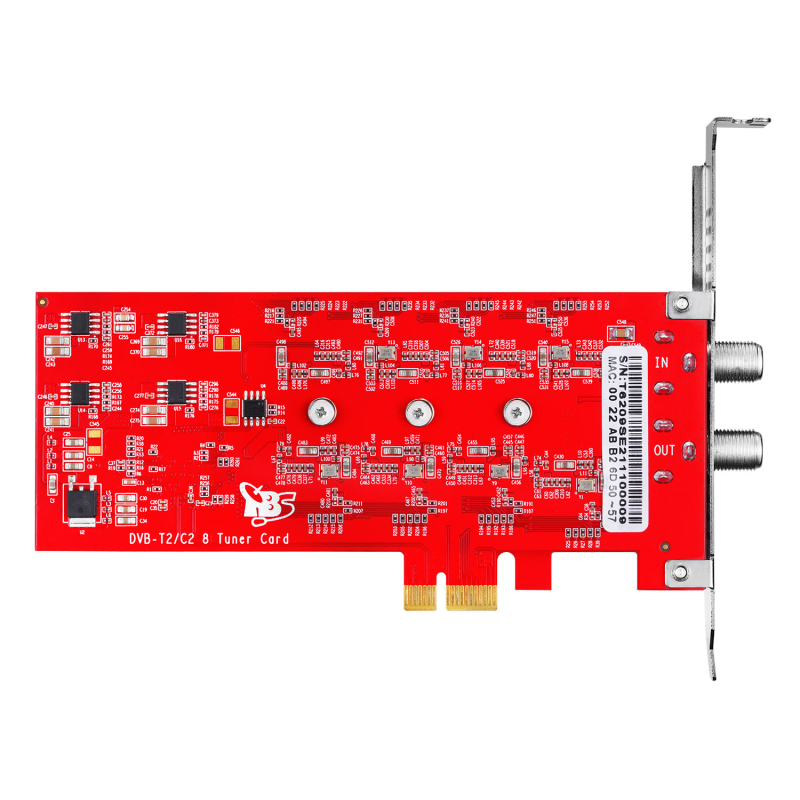

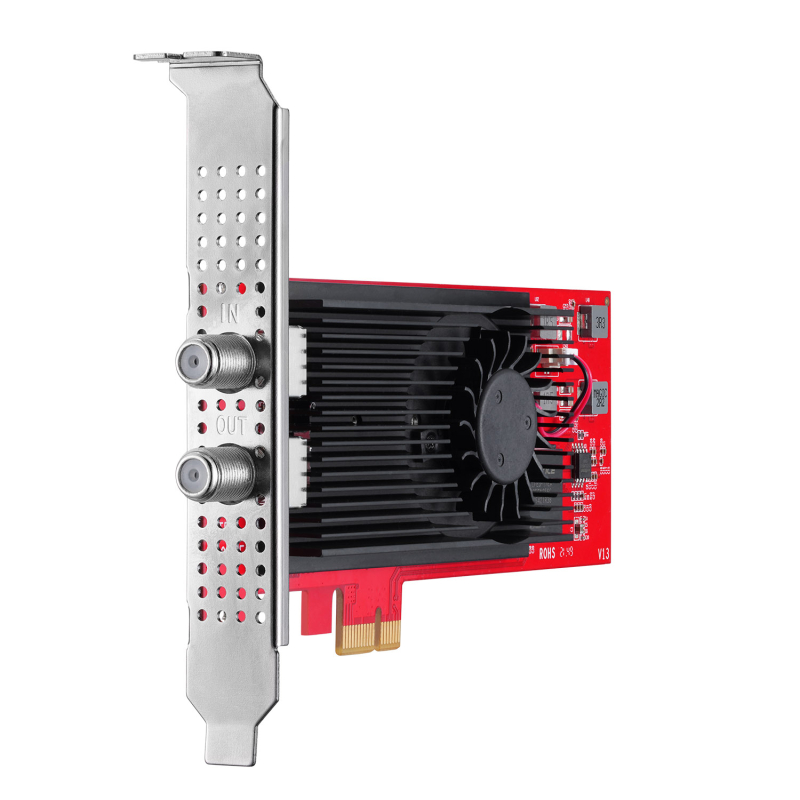

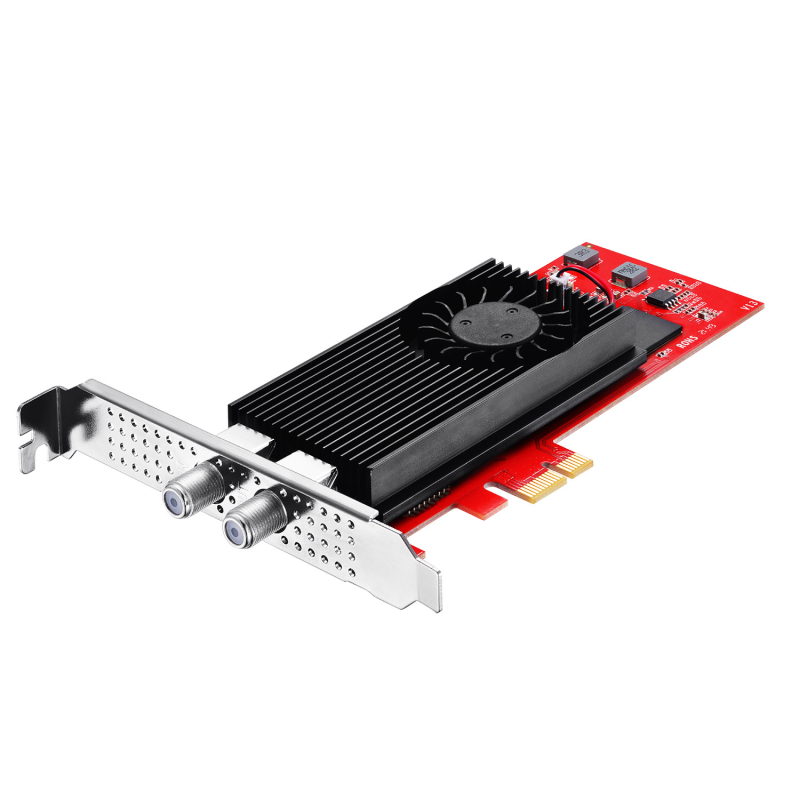

TBS6209 SE DVB-T2/C2/T/C(J.83A/B/C), ISDB-T/C, ATSC1.0 Octa-Tuner OctaTV Tunerr- osmitunerová DVB-T2/C2/T/C/ISDB-T karta do PC - PCIe, podpora současného využití DVB-T2 a DVB-C2 ,všechna rozlišení a kodeky (např.: 1080p FullHD, 4K, MPEG, H.264, HEVC a mnoho dalších) jsou podporována, avšak v závislosti na vašem PC-hardware/software

TBS6209 is a DVB-T2/C2/T/C/ISDB-T TV Octa tuner card with PCI-Express interface, it can be used for watching eight different channels from eight different frequencies simultaneously, and it supports both DVB-T2 and DVB-C2 standard at the same time.

TBS6209 DVB-T2/C2/T/C TV Octa tuner card works also as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. TBS6209 is considered as a professional TV tuner for industrial-level users. When you have limited PCIe slots in your server, TBS6209 enables you to receive more channels than the usual dual or quad TV tuner, thus it is highly recommended for IPTV streaming and broadcasting system.



Main Features:

  • DVB-T2/C2/T/C SD or HD TV receiving
  • Octa channel receiving simultaneously
  • High-definition video, real-Time and scheduled video
  • Recording
  • High sensitivity DVB-T2 octa Tuner for the best digital TV reception
  • Windows BDA driver and Linux Driver ready

Specifications:

TBS-6209 SE is a HD TV tuner card with PCI-Express interface, it is designed to receive digital terrestrial and cable television,  it supports various  DVB standards: DVB-T2/T, DVB-C2/C(J.83A/B/C), ISDB-T/C, ATSC1.0.
Thanks to its octa tuner, TBS-6209 SE is able to receive eight different radio/TV channels from eight different frequencies simultaneously. This internal TV receiver card works also as a video recorder for digital radio/TV programs with full HDTV (1080P, 4K) support.
TBS-6209 SE is considered as a professional TV tuner for systems integrators and industrial-level users, as it provides an efficient solution with eight channels reception, yet it is space-saving due to the low profile (half-height) design.
Product Features
TV tuner card with PCIe interface
DVB standards: DVB-T2/T, DVB-C2/C(J.83A/B/C), ISDB-T/C, ATSC1.0
Professional receiver with octa tuner
Low profile design
Windows BDA driver and Linux Driver ready
Specification
DVB-T2 and T2-Lite:
Receiving channel: VHF band, UHF band
Bandwidth: 1.7, 5, 6, 7, 8MHz
FFT: 1K, 2K, 4K, 8K, 16K, 32K
6, 32, 64, 128 and 256QAM modulations
Code rate: 1/2,3/5, 2/3, 3/4, 4/5,5/6


DVB-T:
Bandwidth: 5, 6, 7, 8MHz
FFT mode: 2K, 8K
QPSK, 16 and 64QAM
Guard intervals: 1/32, 1/16, 1/8, 1/4, 1/128, 19/128, 19/256
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8


DVB-C2:
Bandwidth: 6, 8MHz
16, 64, 256, 1024, 4096 QAM
Guard intervals: 1/64, 1/128
Code rate: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
DVB-C:
 Symbol rate: 1.7 - 7.2 Msym/s
16, 32, 64, 128 and 256QAM
0.15 roll-off factor


ISDB-T:
Bandwidth: 5, 6, 7, 8MHz
FFT: 2K, 4K, 8K
Guard intervals: 1/32, 1/16, 1/8, 1/4
QPSK, 16QAM and 64QAM


ISDB-C:
Symbol rate: 5.274 Msym/s
0.13 roll-off factor
64 and 256QAM
TSMF (Transport Streams Multiplexing Frame)


J.83B (ITU-T J.83 v3.0 Annex B) :
Symbol rate: 5.056941, 5.360537, 5.6 Msym/s
0.18 and 0.12 roll-off factor
64 and 256QAM

ATSC1.0 :
Bandwidth: 6MHz
8VSB modulation
Code rate: 2/3
Input/Power: 12V/14W
Temperature: 0 - 60°C

Connections and other details
Max. dimensions of the card (W x D x H in cm): 14,5 x 6,4 x 2
Weight: ca.0.2 kg

Minimal System Requirements
Operating system (32-Bit and 64-Bit): Windows7, Windows8, Windows10,Windows11, Linux
Available PCIe slot (x1, x4, x8 or x16)
Digital TV signal DVB-T2/C2/T/C(J.83A/B/C), ISDB-T/C, ATSC1.0

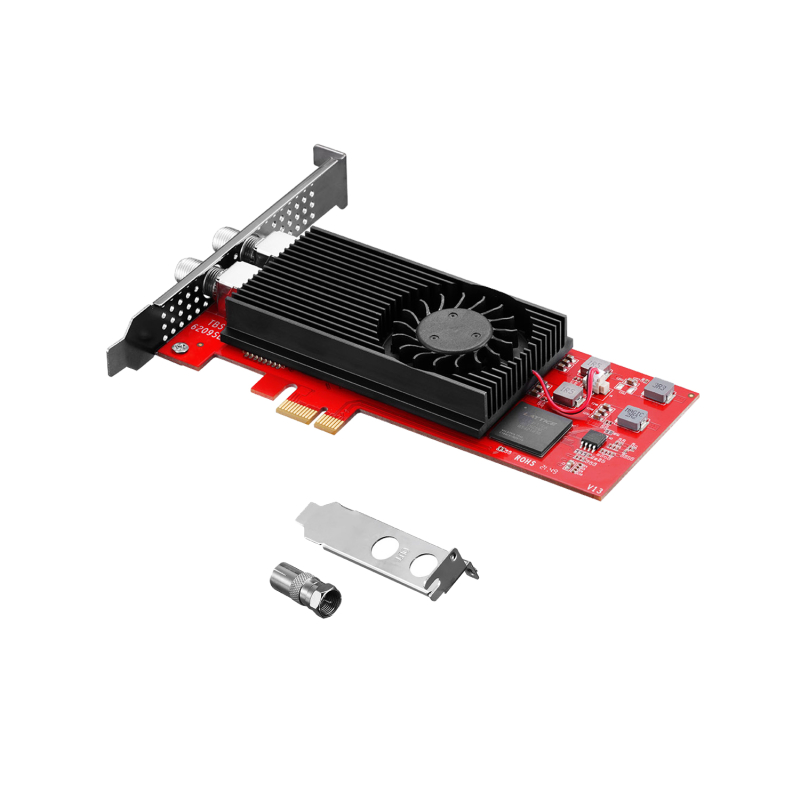

Package Content
1 x TBS-6209 SE
1 x internal power cable
1 x F- coax connector
1 x drivers, Quick Installation Guide and software (as download)

(vyhradzujeme si právo meniť tieto popisy a špecifikácie bez predošlého upozornenia)
