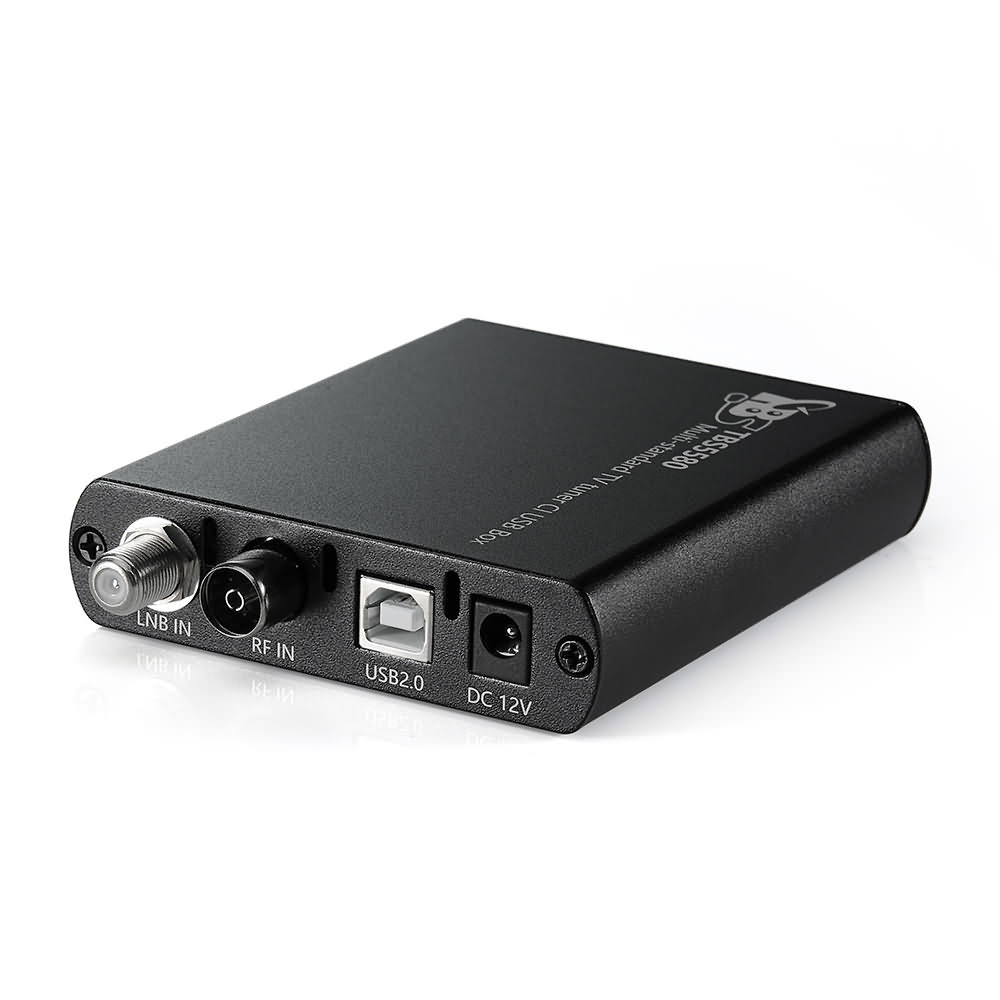

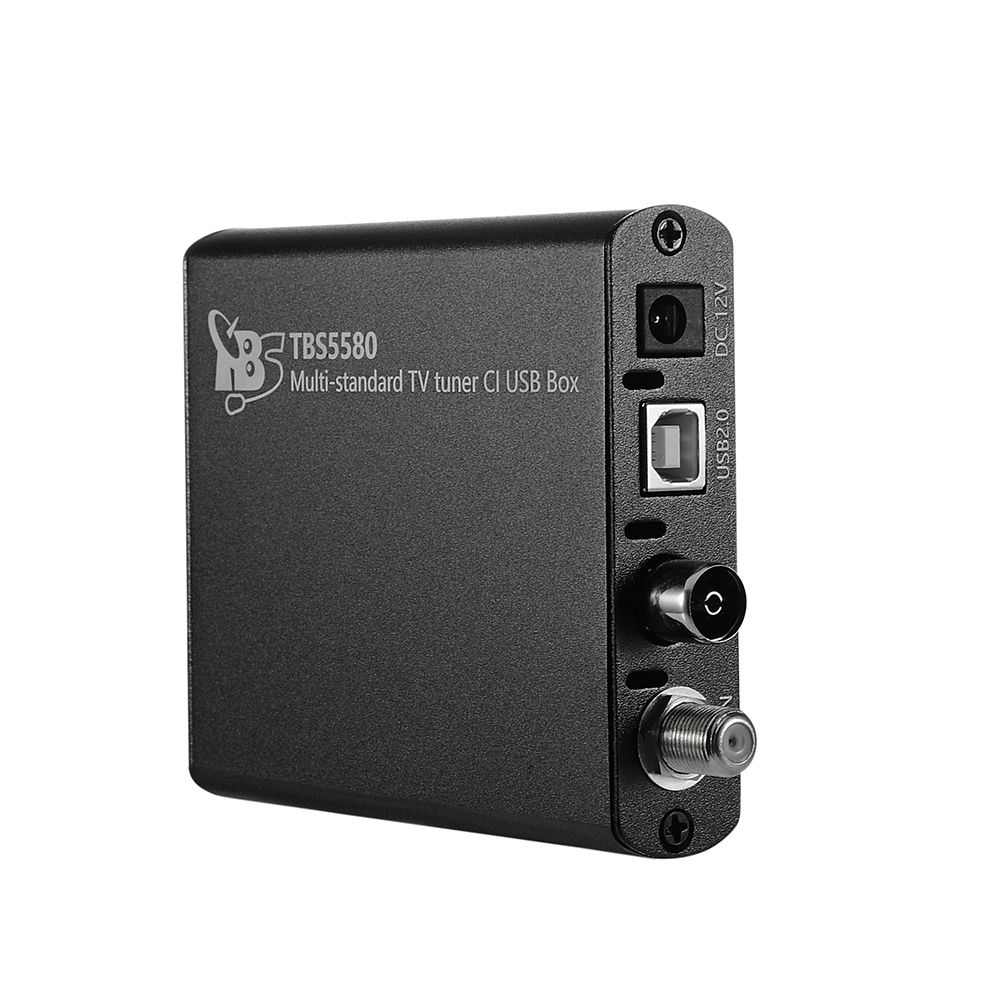

TBS5580 Multi-standard Universal TV Tuner CI USB Box - externí USB box pro příjem DVB-S2X/S2/S/T2/T/C2/C/ISDB-T včetně CI, všechna rozlišení a kodeky (např .: 1080p FullHD, 4K, MPEG, H.264, HEVC a mnoho dalších) jsou podporována, avšak v závislosti na vašem PC-hardware/software

TBS5580 is a multi-standard external TV tuner USB box with CI interface, it is supports multiple digital TV standards, including DVB-S2/S, DVB-T2/T, DVB-C2/C, DVB-S2X and ISDB-T. It is built with Common Interface which allows insertion of CAM and smartcard for pay TV, so it is a good choice for watching/recording digital cable HD TV on PC. What's more, through the USB interface, you can easily plug the Universal TV Tuner to your desktop or laptop PC. With this multi-standard TV tuner card, a switchover between different digital TV signals is much easier, you just need to plug another signal cable instead of taking out the card from your server.

Main Features:

  • Multi-standard TV tuner box
  • Watch & record satellite TV/ radio programs on PC

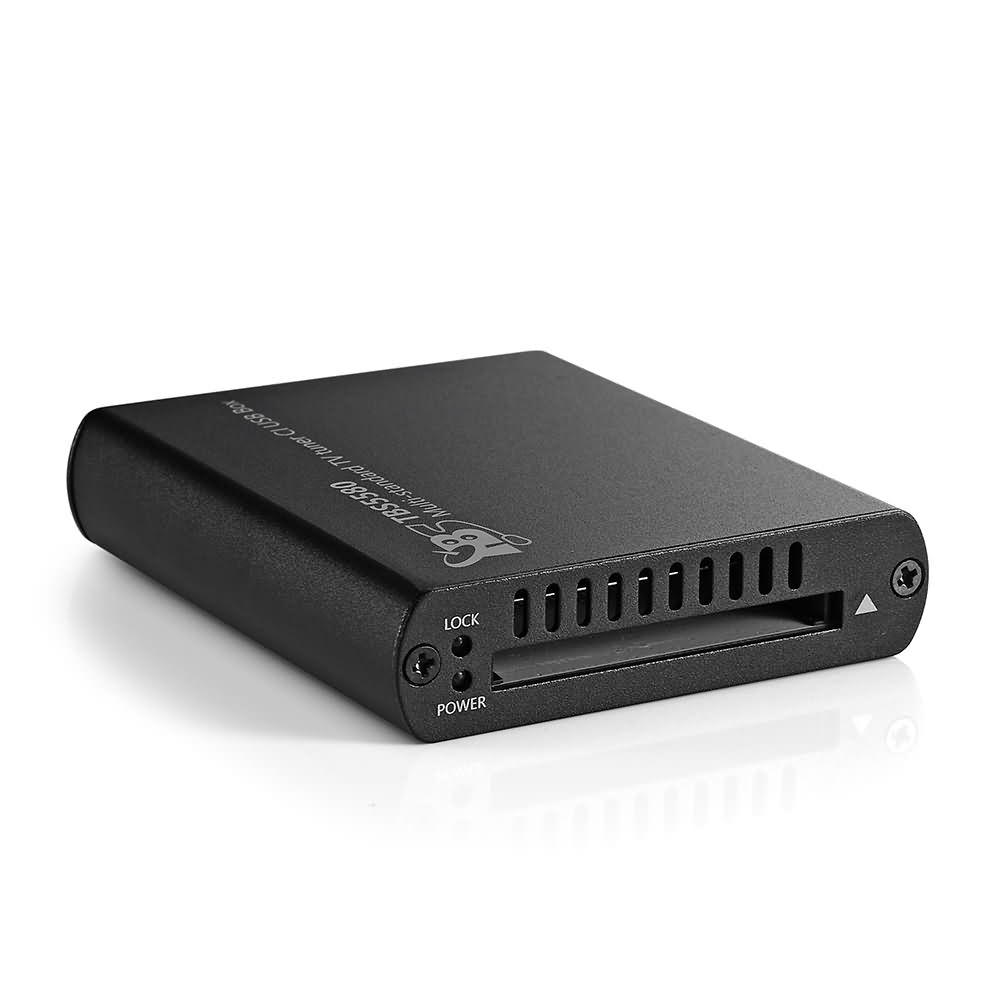

  • Common Interface (Single CI) Support
  • SD or HD TV receiving
  • Unicable/one cable compatible


  • Data receiving
  • IPTV streaming
  • Media monitoring
  • Digital content distributio


ISDB-TCOFDM demodulator and FEC decoding
Support 3 layers decoding
TMCC decoding
Support differential demodulation
AC1 and AC2 decoding
DVB-T2 and T2-LiteReceiving channel:  VHF band, UHF band
Bandwidth:  1.7, 5, 6, 7, 8MHz
FFT mode:  1K, 2K, 4K, 8K, 16K, 32K
Code rate:  1/2, 2/3, 3/4, 5/6, 7/8
DVB-C2COFDM demodulator(16_QAM to 4096_QAM)
FEC(LDPC/BCH) decoder
Bandwidth: 6MHz, 7MHz, 8MHz
DVB-C and ITU-T J.83 Annex BQAM demodulator
FEC decoder
1 to 7.2MSymbol/s
DVB-S/S2/S2Xsymbol rates: 1-45Msps



          QPSK:  1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

          8PSK:  3/5, 2/3, 3/4, 5/6, 8/9, 9/10

        16APSK:  2/3, 3/4, 4/5, 5/6, 8/9, 9/10

        32APSK:  3/4, 4/5, 5/6, 8/9, 9/10


          QPSK:   13/45, 9/20, 11/20

    2_4_2_APSK:   100/180, 104/180

          8PSK:   23/36, 25/36, 13/18

8_8_APSK:   90/180, 96/180, 100/180, 18/30, 20/30

16APSK:   26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180

4_12_16rb_APSK:   2/3

4_8_4_16_APSK:   128/180, 132/180, 140/180

Power consumption
Input/ Power:12V/12W

Other information:

System RequirementsWindows XP / Vista/ 7/8/10, Linux
Available USB 2.0 slot
Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S)
TV tuner box size17*16.5*9cm
Net weight540g
Gift Box Size18*18*10cm

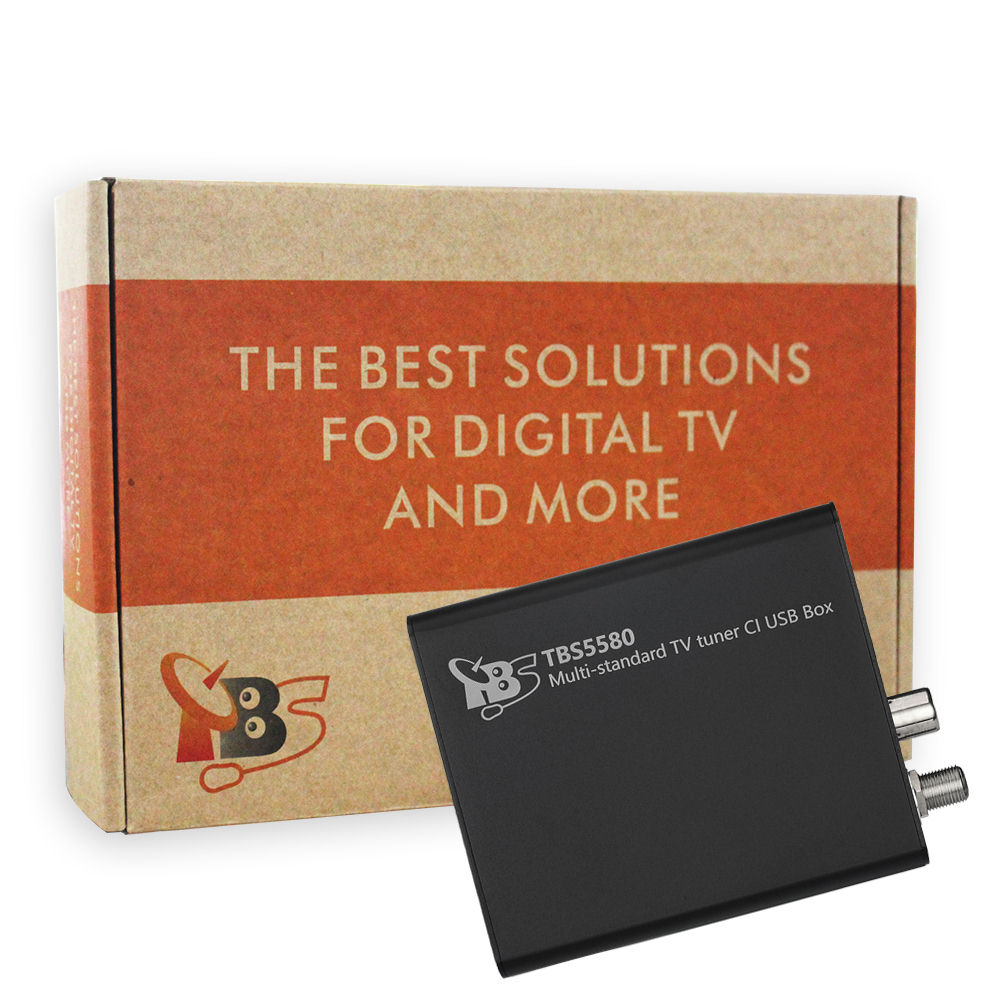

Package Contents1 x TBS5580
1 x USB cable
1 x F-IEC

(vyhradzujeme si právo meniť tieto popisy a špecifikácie bez predošlého upozornenia)
