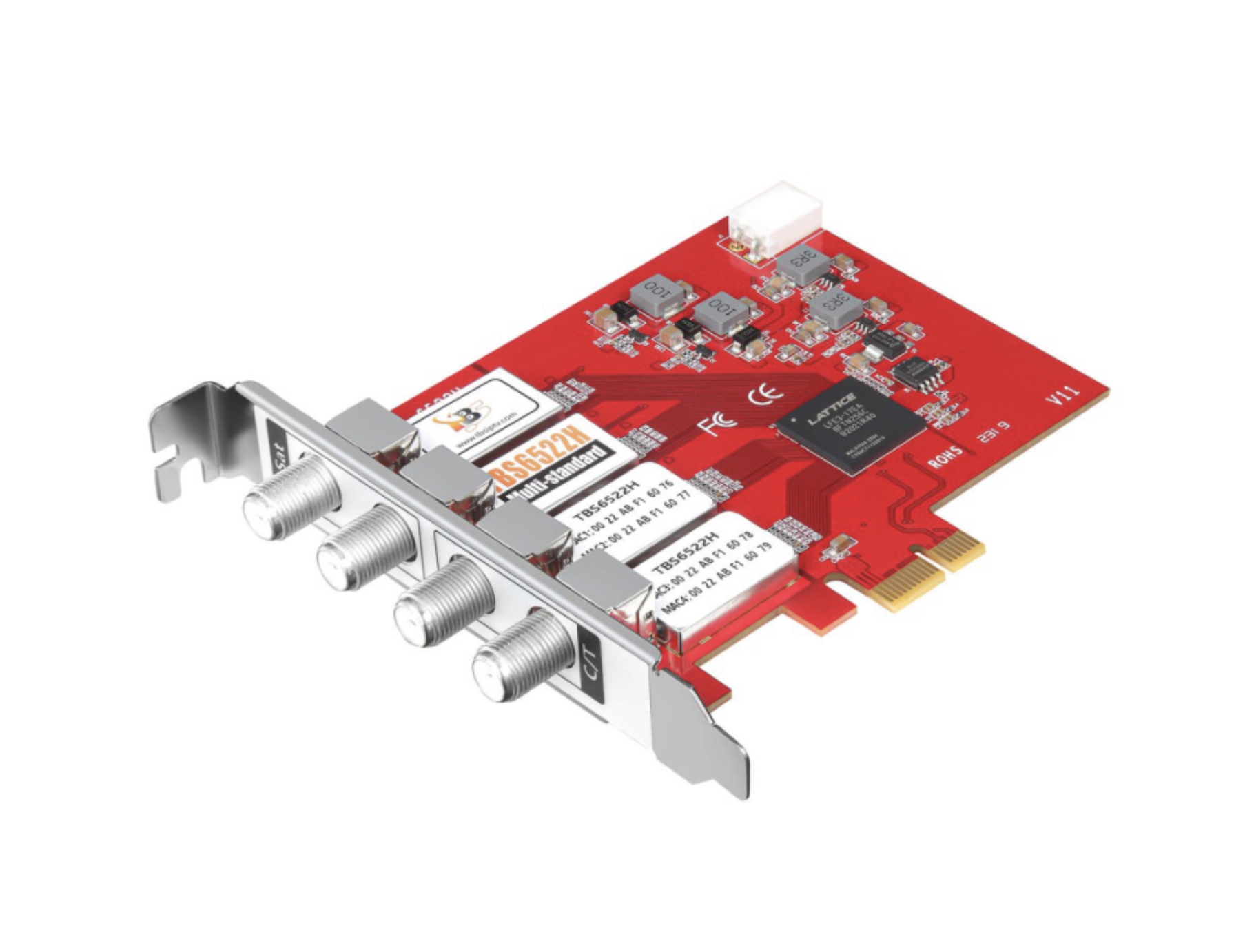

TBS-6522H je dvoutunerová TV karta pro různé typy příjmu: satelitní (DVB-S2X/S2/S), kabelový (C2/C (J.83A/B/C)), pozemní (DVB-T2/T), ISDB-T/C a ATSC1.0. Jako duální tunerová karta může TBS-6522H přijímat dva satelitní kanály a dva kabelové/pozemní kanály současně.

Tato multistandardní DVB tuner karta je vhodná jako doplňkové zařízení k vašemu PC. Můžete snadno nahrávat živé televizní pořady okamžitě nebo časově řízené na datový nosič jediným kliknutím. Jsou zahrnuty ovladače pro všechny 32bitové a 64bitové operační systémy (pouze pro hardware založený na x86): Windows XP, Vista, Windows7, Windows8.x, Windows 10. Windows 11 a Linux.

Product Features

  • Supported TV standards: DVB-S/S2/S2X, DVB-T2/T, DVB-C2/C (ITU-T J.83 Annex A/B/C), ISDB-T, ISDB-C, ATSC1.0
  • Support VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK
  • All resolutions and codecs (e.g.: 1080p, FullHD, 4K, MPEG, H.264, HEVC and many more) are supported, but also depending on your PC-hardware/software
  • Receiving data
  • IPTV streaming
  • Manual and scheduled recording of digital TV / radio
  • Teletext
  • TimeShift function to Pause Live TV
  • Electronic Program Guide (EPG)
  • Full support for 32-bit and 64-bit operating systems
  • Software application with multiple functionalities for TV reception

Specifications

  • DVB-S2/S:
    • Symbolrate: 1 to 45 Msps
    • QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    • 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
    • 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    • 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

  • DVB-S2X:
    • QPSK: 1/4, 1/3, 2/5(S2-MODCODs), 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs), 11/45, 4/15, 14/45, 7/15 8/15, 32/45
    • 8PSK (8APSK-L): 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs), 7/15, 8/15, 26/45, 32/45
    • 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs), 7/15, 8/15, 26/45, 3/5, 32/45
    • 32APSK (32APSK-L): 3/4 ,4/5,5/6, 8/9, 9/10 (S2-MODCODs)32/45, 11/15, 7/9,(2/3)

  • DVB-T2 and T2-Lite:
    • Receiving channel: VHF band, UHF band
    • Bandwidth: 1.7,5, 6, 7, 8 MHz
    • FEC: 16, 32, 64, 128 and 256QAM
    • FFT-Mode: 1K, 2K, 4K, 8K, 16K, 32K
    • Guard Interval: 1/32, 1/16, 1/8, 1/4, 1/128, 19/128, 19/256
    • Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6

  • DVB-T:
    • Bandwidth: 6, 7, 8 MHz
    • FEC: QPSK, 16 and 64QAM
    • FFT-Mode: 2K, 8K
    • Code-Rate: 1/2, 2/3, 3/4, 5/6, 7/8

  • DVB-C2:
    • COFDM demodulator (16QAM to 4096QAM)
    • FEC (LDPC/BCH) decoder
    • Bandwidth: 6 MHz, 7 MHz, 8 MHz

  • DVB-C:
    • Symbolrate: 1.7 to 7.2 Msym/s
    • 16, 32, 64, 128 and 256QAM
    • 0.15 roll-off factor

  • J.83B (ITU-T J.83 v3.0 Annex B):
    • Symbolrate: 5.056941, 5.360537, 5.6 Msym/s
    • 64 and 256QAM
    • 0.18 and 0.12 roll-off factor
  • ISDB-T:
    • COFDM-demodulator and FEC-decoding
    • Support 3 layers decoding
    • TMCC decoding
    • Support differential demodulation
    • AC1 and AC2 decoding

  • ISDB-C:
    • Symbolrate: 5.274 Msym/s
    • 64 and 256QAM
    • 0.13 roll-off factor
    • TSMF (Transport Streams Multiplexing Frame)

  • ATSC 1.0:
    • 6MHz channel bandwidths
    • 8VSB modulation
    • Code rate: 2/3

Connections and other details

  • Two satellite TV antenna inputs and two cable or terrestrial antenna Inputs. Two reception methods are receivable independantly at the same time.
  • Maximum dimensions of the card (W x D x H in cm): 12,1 x 10,8 x 2
  • Weight: 0.12 kg


Minimal System Requirements

  • Operating system (32-bit and 64-bit): Windows7, Windows8, Windows10, Windows11(core isolation deactivated), Linux
  • CPU for SDTV: min. Pentium 3, 1 GHz or similar AMD Athlon or alternatively video decoding over graphic chip
  • CPU for HDTV: min. Pentium 3, 3 GHz or similar AMD Athlon (Dual Core recommended) or alternatively video decoding over graphic chip
  • 1GB of RAM recommended
  • Hard disk with min. 1GB free capacity
  • Graphics card with min. 64MB memory
  • Sound card with DirectX ® 9 support or higher

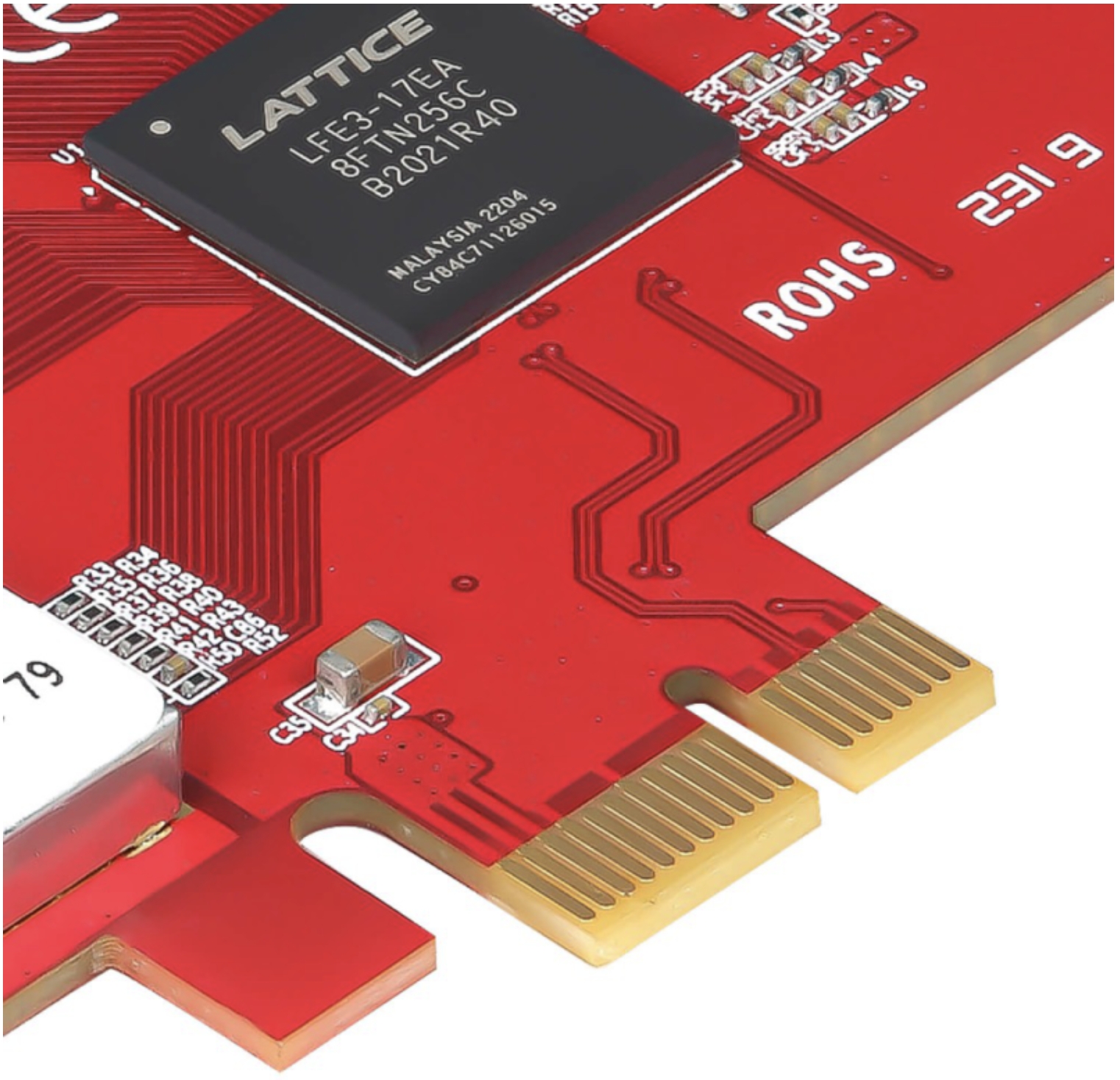

  • Available PCIe x1, x4, x8 or x16 slot slot
  • Capable for digital satellite receiver or cable or terrestrial area

Package Content

  • 1 x TBS-6522H
  • 2 x F-coax connector
  • 1 x power cable
  • 1 x drivers, Quick Installation Guide and Software (as download)

(we reserve the right to change the description and specifications without prior notice)
