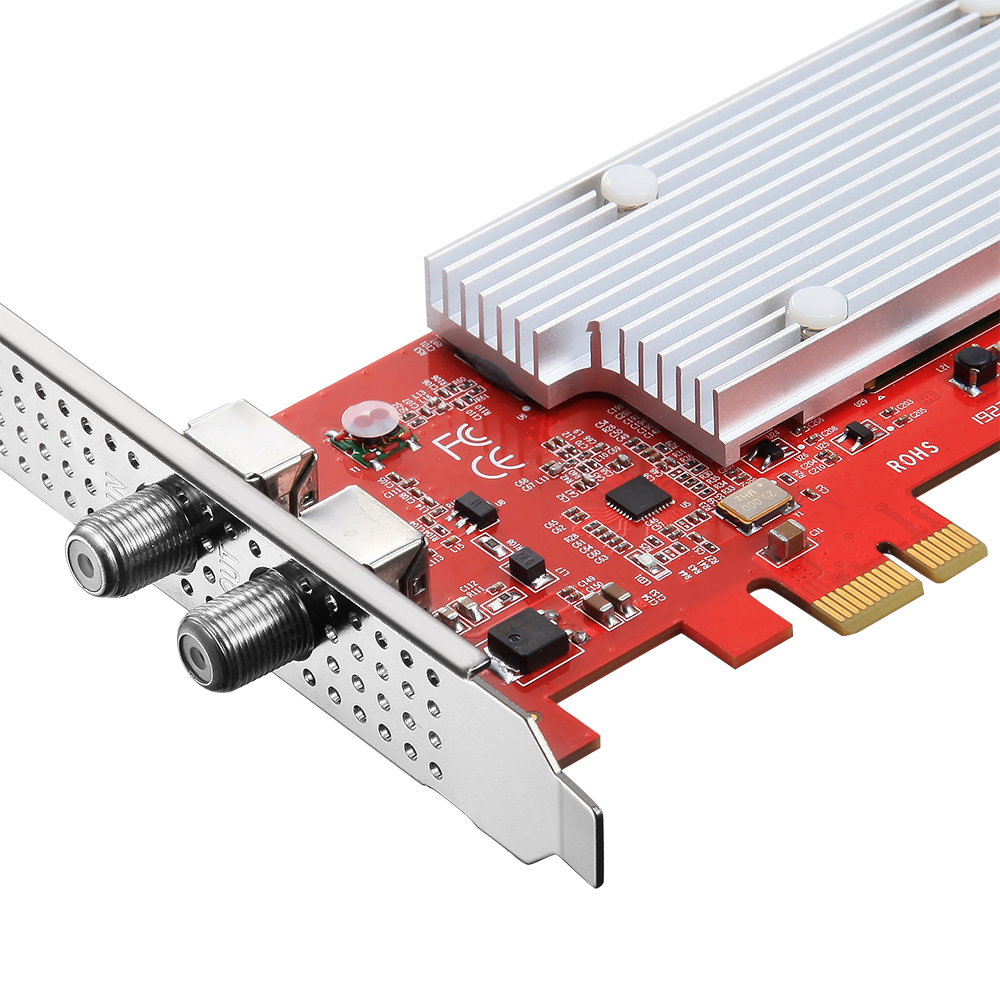

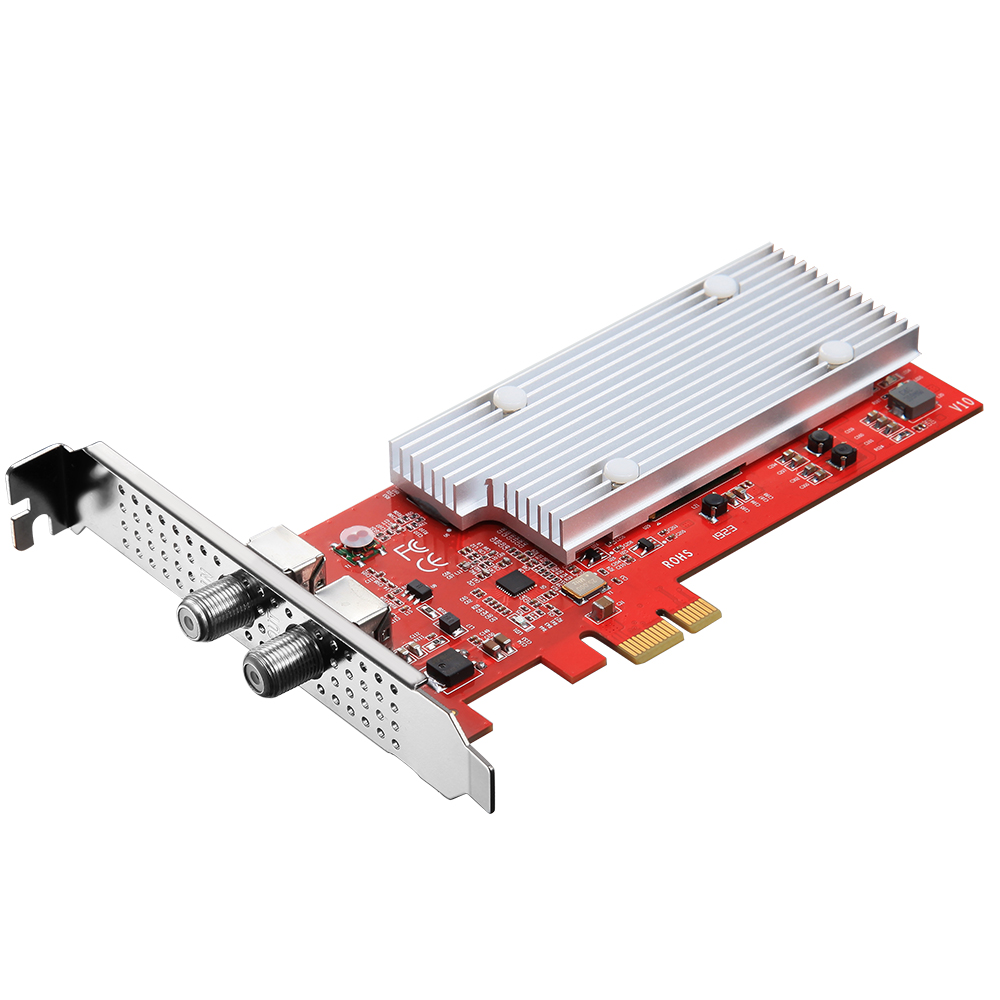

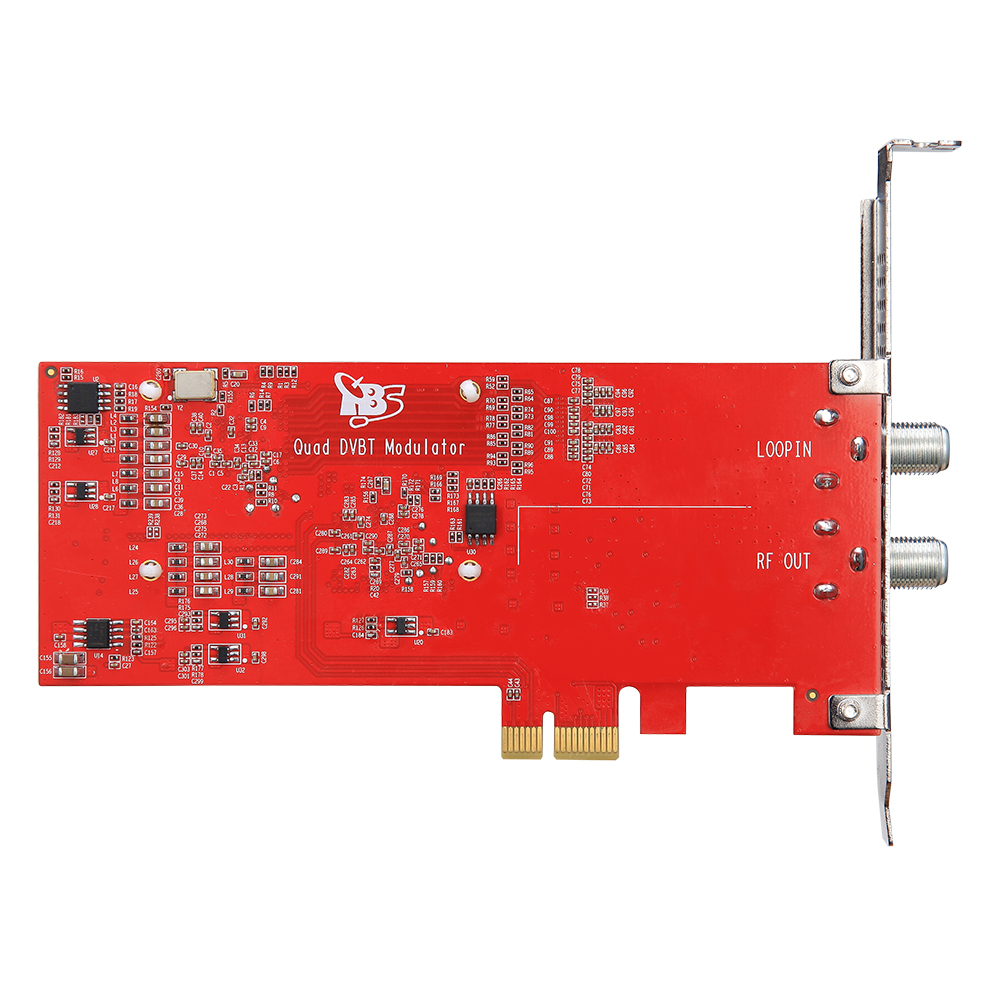

TBS6104 DVB-T Quad Modulator Card

TBS6104 is a DVB-T modulator card, it works as a DVB-T signal generator and supports 4- frequencies DVB-T transmission.This quad card can convert transport stream to DVB-T signal, for example, you can use a TBS DVB-S2 TV tuner card to receive satellite TV channels and at the same time use this modulator card to convert the DVB-S2 TS to DVB-T signal, a modern TV or Set-Top-Box with DVB-T tuner integrated can be used to receive the terrestrial signal easily from the modulator card.

TBS6104 provides a very cost-effective solution to transfer other digital resources, like DVB-S2/S, DVB-C, ISDB-T, ATSC or even IPTV resources into an existing DVB-T system in hotels, hospitals, or dormitories.

Specifications

Possible InputsDVB-S2/S, DVB-C, ISDB-T, ATSC or IPTV resources
OutputsDVB-T in 4 frequencies
Frequency range50 ~ 950 MHz
Channel bandwidth6,7,8 MHz
Level5-120
FFT2K,8K
FECQPSK,16QAM,64QAM
Code rate1/2,2/3,3/4,5/6,7/8
Guard interval:1/4,1/8,1/16,1/32
Max bit rate27Mbps/per channel
Working Temperature-40°~85°
Power10W
System RequirementsLinux
Available PCI Express x1, x4, x8 or x16 slot

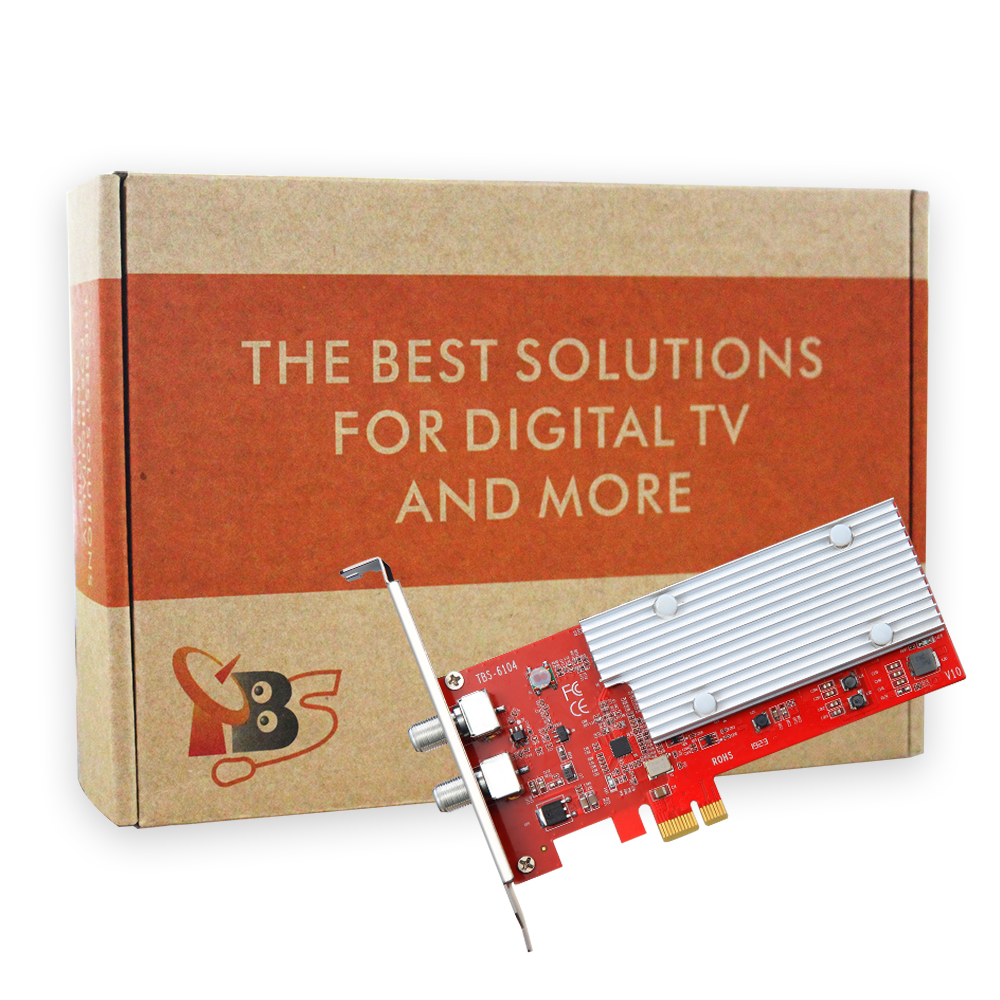

Package Contents1 * TBS6104
1 * low profile bracket
F-IEC connector
Card SizeGift Box SizeGross Weight
130mm * 68.7mm200*138*50mm0.5kg
(wir behalten uns das Recht vor, diese Beschreibungen und Spezifikationen ohne vorherige Ankündigung zu ändern)
